CNC FRĒZĒŠANAS PAKALPOJUMI

Uzņēmums specializējas frēzēšanas pakalpojumu sniegšanas segmentā.

CNC Frēzēšanas tehnoloģija nodrošina iespēju izgatavot jebkuras konfigurācijas augstas precizitātes detaļas, dažādu formu un lielumu izstrādājumus. Iespēja veikt dažādu metinātu detaļu pēcapstrādi (veicot precīzus urbumus-virsmu frēzēšanu)

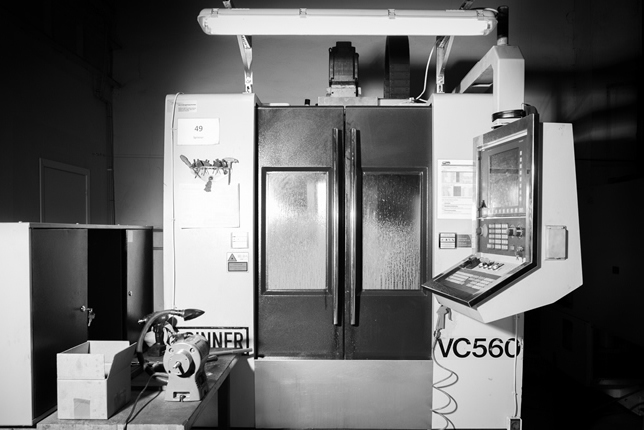

	SPINNER VC 560 DIMENSIONS: X-Travel: 650mm Y-Travel: 500mm Z-Travel: 500mm Table size: 700x550 Spindle taper: HSK65 Spindle RPM: 12000U/min Axis feed: 60 m/min Workpiece: 200kg
OKUMA MX - 55VB DIMENSIONS: X-Travel: 1050mm Y-Travel: 510mm Z-Travel: 570mm Table size: 1200x550 Spindle taper: SK40 Spindle RPM: 7000U/min Axis feed: 30 m/min Workpiece: 500kg

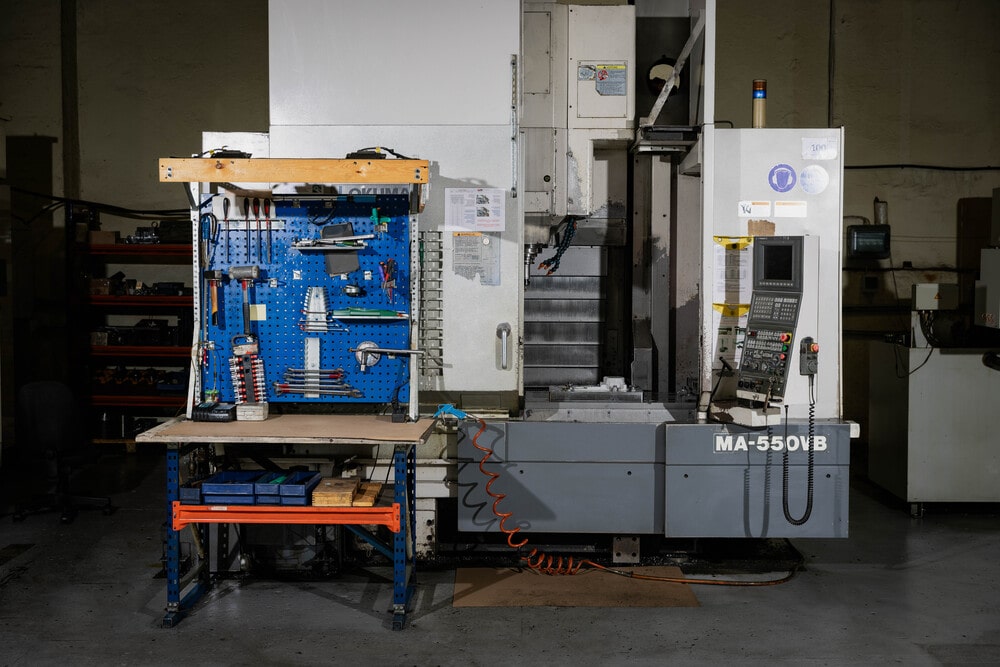

	OKUMA MA - 550VB DIMENSIONS: X-Travel: 1350mm Y-Travel: 550mm Z-Travel: 570mm Table size: 1400x600 Spindle taper: BT50 Spindle RPM: 7000U/min Axis feed: 30 m/min Workpiece: 500kg
FADAL VMC 4020 DIMENSIONS: X-Travel: 1050mm Y-Travel: 510mm Z-Travel: 700mm 4-Rotary axis: 360 x 0.001deg. 5-Tilting axis: 90 x 0.001deg. Table size: 1100x550 Spindle taper: BT40 Spindle RPM: 10000U/min Axis feed: 15 m/min Workpiece: 500kg
	OKUMA MX - 55VB DIMENSIONS: X-Travel: 1050mm Y-Travel: 510mm Z-Travel: 570mm Table size: 1200x550 Spindle taper: SK40 Spindle RPM: 7000U/min Axis feed: 30 m/min Workpiece: 500kg
HECKERT CWK 400 DIMENSIONS: Horizontal X-Travel: 650mm Y-Travel: 500mm Z-Travel: 650mm B-Rotary axis: 360 x 0.001deg. Table size: 400x400 Spindle taper: SK40 Spindle RPM: 10000U/min Axis feed: 30 m/min Workpiece: 700kg

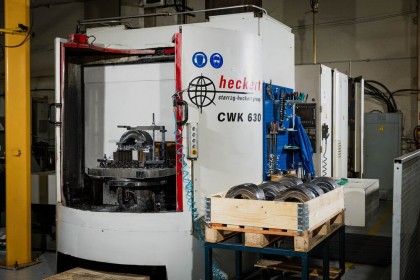

	HECKERT CWK 630 H/V DIMENSIONS: Horizontal X-Travel: 1000mm Y-Travel: 700mm Z-Travel: 1000mm B-Rotary axis: 360 x 1deg. Table size: 800x630 Spindle taper: ISO50 Spindle RPM: 7000U/min Axis feed: 30 m/min Workpiece: 1200kg

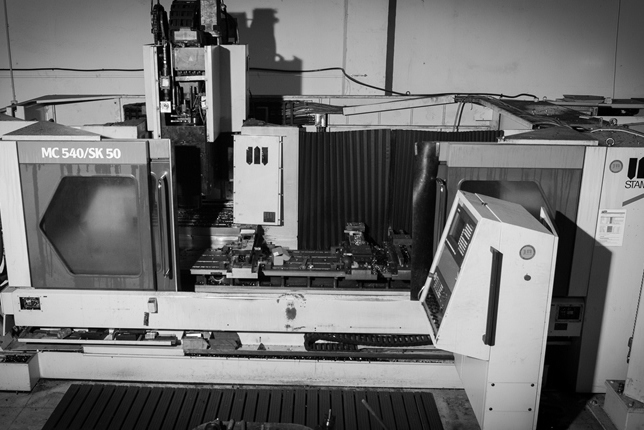

STAMA MC540/SK50 DIMENSIONS: X-Travel: 2000 mm Y-Travel: 500 mm Z-Travel: 600 mm Table size: 2500 x 550 mm Spindle taper: SK50 Spindle RPM: 6000U/min Axis feed: 15 m/min Workpiece: 2000kg

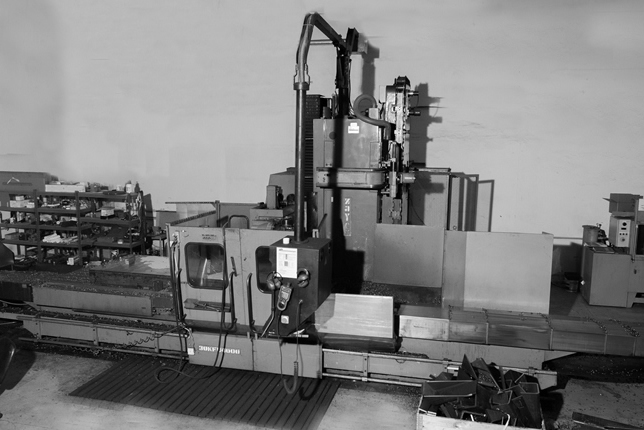

	ZAYER 30 KFU 4000 DIMENSIONS: X-Travel: 4000 mm Y-Travel: 1260 mm Z-Travel: 1500 mm Milling indexing head: A head: 0.001deg. B head: 0.001 deg. C rotary axis: 800x800 (0.001deg.) Table size: 4000 x 1000 mm Spindle taper: SK50 Spindle RPM: 3500U/min Axis feed: 15 m/min Workpiece: 10000kg

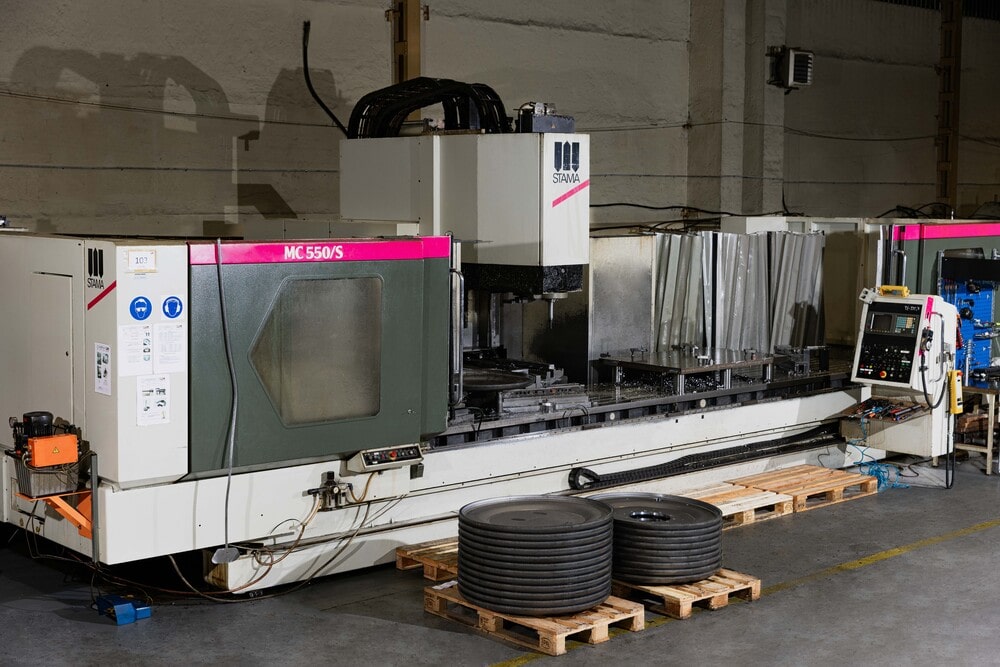

STAMA MC550/S DIMENSIONS: X-Travel: 6000 mm Y-Travel: 1000 mm Z-Travel: 700 mm Table size: 7000 x 1000 mm Spindle taper: SK50 Spindle RPM: 4500U/min Axis feed: 15 m/min Workpiece: 6000kg

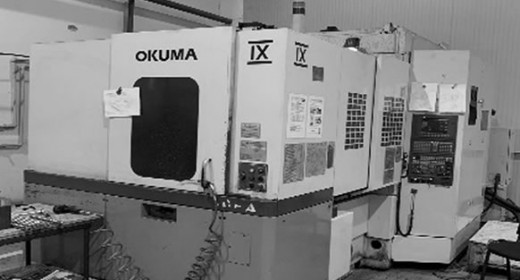

	Okuma MA-40HA DIMENSIONS: Horizontal X-Travel: 650mm Y-Travel: 500mm Z-Travel: 650mm B-Rotary axis: 360 x 1deg. Table size: 400x400 Spindle taper: SK40 Spindle RPM: 7000U/min Axis feed: 40 m/min Workpiece: 700kg
